Create a client certificate

Learn how to create a client certificate for NetFoundry Frontdoor. Upload an existing certificate or generate a new one by submitting a certificate signing request (CSR), then configure the share to reference the certificate and test the connection to verify secure access.

Steps

Frontdoor console

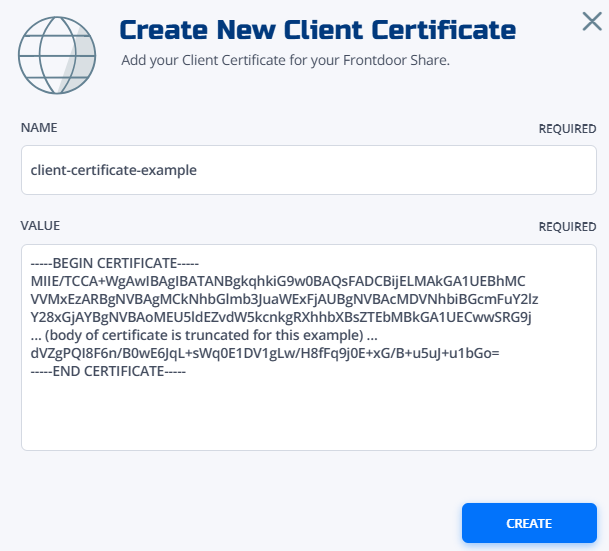

1. From the Frontdoor console, click Certificates in the left-hand menu.
2. Click the + icon to create a new client certificate.
3. Enter a name for your certificate.
4. Copy and paste the certificate data in OpenSSL PEM format into the Value field.
5. Click Create.

Your client certificate will appear in the certificate list. Reference this certificate in your share configuration for TCP shares.

Command-line interface

1. Choose between uploading an existing certificate or generating from a certificate signing request (CSR):

   • Option A: Upload an existing certificate

     Choose this option if you already have a trusted client certificate (in PEM format) that was issued by a third-party certificate authority:

     curl -X POST \
       -H "Authorization: Bearer $TOKEN" \
       -H "Content-Type: application/json" \
       -d '{
         "name": "my-api-client",
         "type": "CERTIFICATE",
         "value": "-----BEGIN CERTIFICATE-----\nMIIB..."
         "validYears": 1
       }' \
       "https://gateway.production.netfoundry.io/frontdoor/$FRONTDOOR_ID/client-certificates"

   • Option B: Generate from a CSR using a bearer token

     Choose this method to have NetFoundry Frontdoor issue and sign a new client certificate for a locally generated private key, authorizing the request with a full access bearer token:

     # First, create a CSR locally
     openssl req -new -key private.key -out certificate.csr

     # Then submit to Frontdoor
     curl -X POST \
       -H "Authorization: Bearer $TOKEN" \
       -H "Content-Type: application/json" \
       -d '{
         "name": "my-generated-cert",
         "type": "CSR",
         "value": "-----BEGIN CERTIFICATE REQUEST-----\nMIIB..."
         "validYears": 1
       }' \
       "https://gateway.production.netfoundry.io/frontdoor/$FRONTDOOR_ID/client-certificates"

   • Option C: Generate from CSR using a certificate request token

     Choose this method to securely request a new certificate using a locally generated CSR and a specific, single-use certificate request token, which avoids exposing a full bearer token.

     # First, create a CSR locally
     openssl req -new -key private.key -out certificate.csr

     # Then submit to Frontdoor
     curl -X POST \
       -H "Content-Type: application/json" \
       -d '{
         "type": "CSR",
         "value": "-----BEGIN CERTIFICATE REQUEST-----\nMIIB..."
         "validYears": 1
       }' \
       "https://gateway.production.netfoundry.io/frontdoor/$FRONTDOOR_ID/client-certificates/token/67890abcde"

2. Reference the client certificate in your share configuration for authentication requirements.

3. Verify that your client can successfully authenticate using the certificate:

   # Test with curl
   curl -X GET \
     --cert client.crt \
     --key client.key \
     https://your-frontend.example.com/api/test

   # Test certificate validation
   openssl s_client -connect your-frontend.example.com:443 -cert client.crt -key client.key

Troubleshooting

Certificate validation errors:

• Verify certificate format (PEM encoding)
• Check certificate expiration dates
• Ensure certificate chain is complete
• Validate key usage extensions

Connection failures:

• Confirm private key matches certificate
• Check certificate is properly referenced in share
• Verify client is presenting certificate correctly
• Review firewall and network connectivity

Performance concerns:

• Monitor TLS handshake times
• Consider certificate caching strategies
• Evaluate impact of certificate validation
• Optimize certificate chain length

Next steps

• Create shares that use client certificates.
• Review the client certificates API guide.
• Learn about auth providers.
