Use network activity

The Network Activity page shows observed network flows and traffic patterns across your firewalls. Use it to explore what's happening on your network, identify unknown or unwanted traffic, and create firewall rules directly from what you see.

warning

When discovery mode is enabled on an interface, the firewall allows all traffic through, regardless of any rules configured for that interface. Discovery mode can run indefinitely. You decide when you've seen enough traffic, then disable it to begin enforcing rules.

Filter network flows

Use the search and filter fields at the top of the page to narrow down the flow list:

Filter	Filter by
Time range	Date/time window for observed flows (defaults to Past Day; click the calendar icon to change it)
Source Firewall	Firewall name
Source Interface	Interface name (e.g., ens5)
Source Address	Source IP address or subnet
Destination Address	Destination IP address or subnet
Destination Port	Port number or range
Protocol	Protocol (TCP or UDP)

Combine filters to isolate specific traffic for analysis or rule creation.

Table columns

Each flow row includes:

Column	Description
Direction	Whether the flow is INGRESS (into the firewall) or EGRESS (out of the firewall)
TX	Bytes transmitted for the flow
RX	Bytes received for the flow
Connections	Total number of connections observed for the flow

Switch between grid and roll-up view

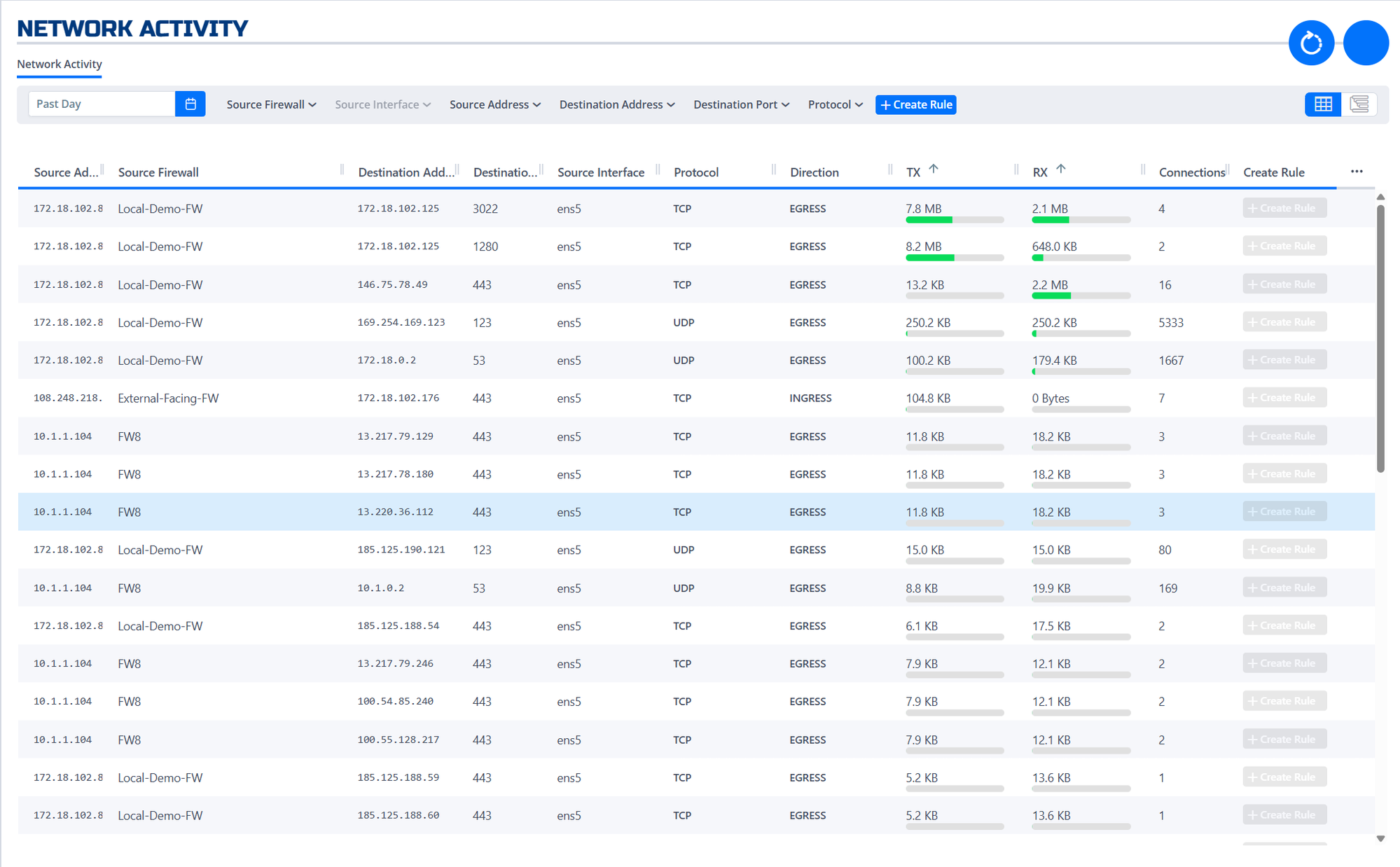

By default, the page shows the Grid View, which lists each flow individually. To group flows by firewall, click the View icon at the top right of the table to switch to Roll-Up View. Click it again to return to grid view.

Roll-up view makes it easier to spot patterns and high-level trends across many flows.

Create a rule from a discovered flow

You can create a rule from a specific flow, or open a blank rule from the toolbar.

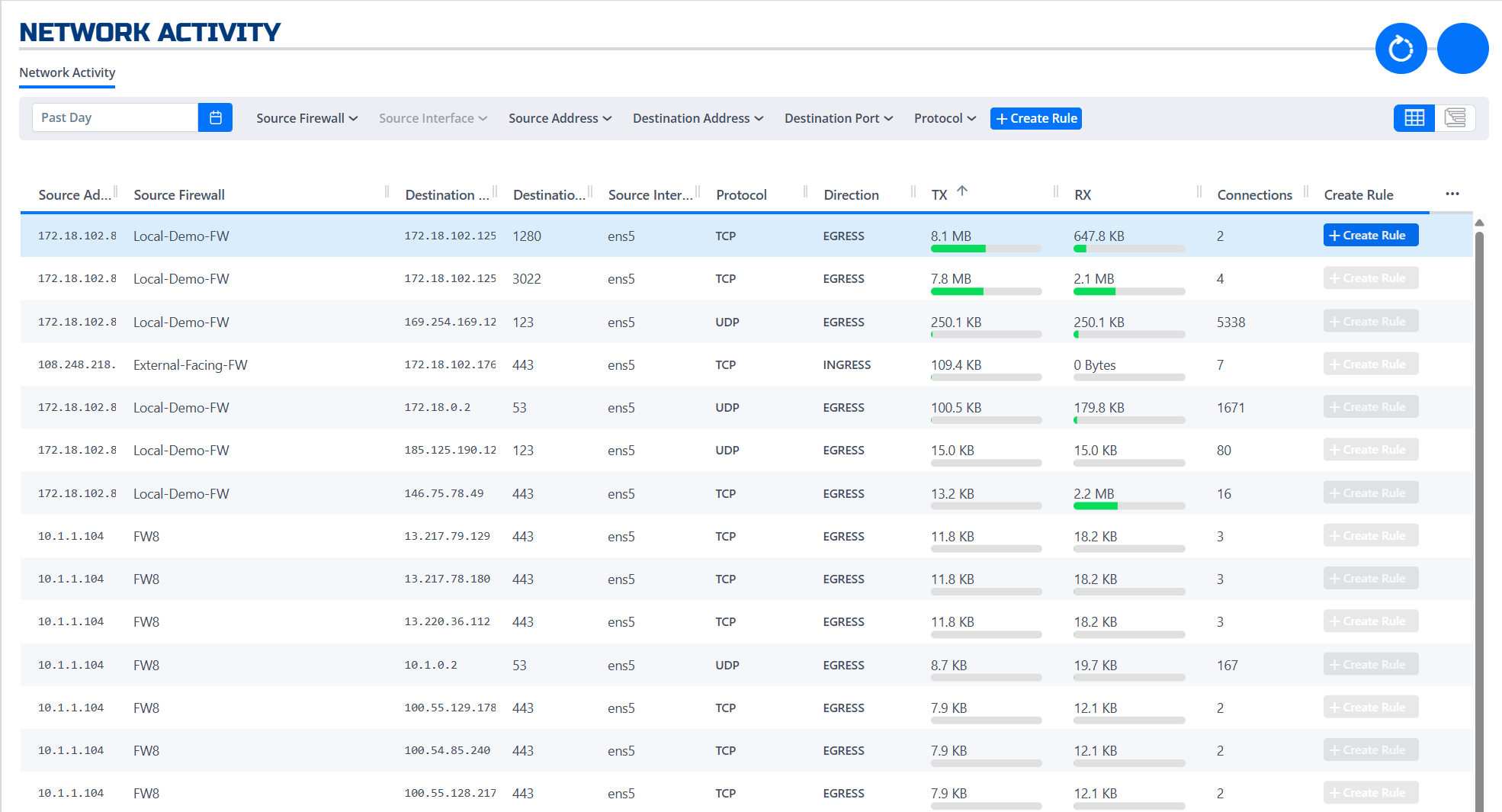

1. On the Network Activity page, find the flow you want to allow or block.

2. Click the icon in that row's Create Rule column.

   Alternatively, click the + Create Rule button at the top right of the filter bar to open a blank rule.

   The rule creation dialog opens, pre-filled with the source, destination, port, and protocol from that flow (or blank if opened from the toolbar).

3. Adjust the rule details as needed and set the action to Allow or Block.

4. Click Done to save the rule. It becomes active immediately and appears in your firewall's rule set.

For more on managing rules, see Manage firewall rules.
